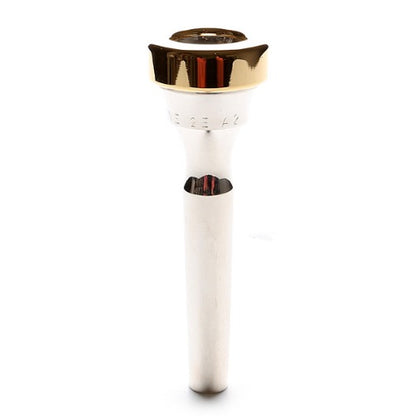

JK(Josef Klier) Custom Trumpet Silver Mouthpiece - Screw Rim, Exclusive Bottom

JK(Josef Klier) Custom Trumpet Silver Mouthpiece - Screw Rim, Exclusive Bottom

$285.60 USD
$285.60 USD
Sale Sold out
Shipping calculated at checkout.

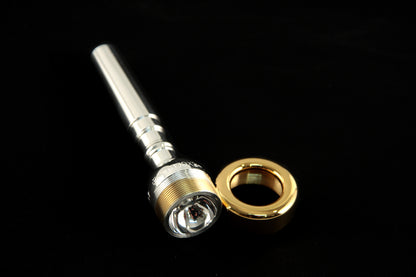

Exclusive mouthpieces with screw rim



Each mouthpiece of the JK-Exclusive trumpet and cornet series also can be bought as bottom part and screw-on rim. All screw-on rims can be delivered as silver plated brass, high gloss gold plated or as white plastic, e.g. to give allergic costumers an alternative or to make possible comfortable playing in winter.

The rim contours -1, -2, -3, -4 and -N are transferable to all diameters of the Exclusive series.
For instance, the bottom part 5C can be matched with the rims 5-1, 5-2, 5-3 etc. Each screw-on variant can be manufactured as one-piece mouthpiece too.


Example

Schraubränder

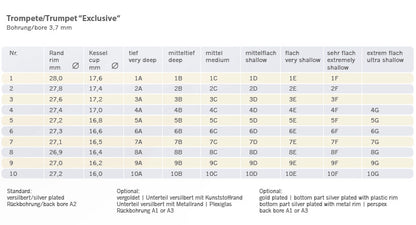

Trumpet "Exclusive" – bore 3.7 mm

No. rim mm Ø cup mm Ø very deep deep medium shallow very shallow extremely shallow ultra shallow
1 28.0 17.6 1A 1B 1C 1D 1E 1F
2 27.8 17.4 2A 2B 2C 2D 2E 2F
3 27.6 17.2 3A 3B 3C 3D 3E 3F
4 27.4 17.0 4A 4B 4C 4D 4E 4F 4G
5 27.2 16.8 5A 5B 5C 5D 5E 5F 5G
6 27.3 16.6 6A 6B 6C 6D 6E 6F 6G
7 27.1 16.5 7A 7B 7C 7D 7E 7F 7G
8 26.9 16.4 8A 8B 8C 8D 8E 8F 8G
9 27.0 16.2 9A 9B 9C 9D 9E 9F 9G
10 27.2 16.0 10A 10B 10C 10D 10E 10F 10G

Standard: Optional:
silver plated gold plated
back bore A2 bottom part silver plated with plastic rim
bottom part silver plated with metal rim
perspex
back bore A1 or A3





How to Order:

  1. Select Rim Size: Choose the appropriate size for yourself by referring to the rim size chart below (e.g., Bach 1-1/2C corresponds to No. 4).

  2. Select Rim Shape: Choose your preferred rim shape from the rim shape chart below (e.g., Semi Flat is generally preferred).

  3. Select Bore: A larger bore requires more air. Generally, 3.6 or 3.8 is selected.

Recommended Example Setup: Rim 4.2 / Bore 3.8 / Rim Size: 4D





Notice!!

If out of stock, it will be automatically backordered.
